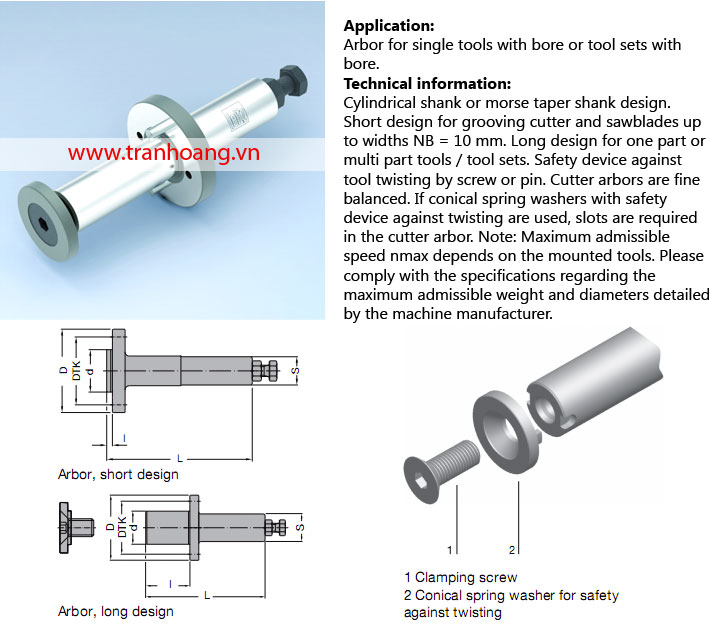

Cutter arbor with cylindrical shank TH-628
Giá: Liên hệ

Thông số kỹ thuật:
Short design
TI 501-0-04

D
mm		 d
mm		 L
mm		 l
mm		 S
mm		 TK
mm		 ID
59 30 102 4 25x60 48 041367
59 30 102 4 20x50 48 041368
59 30 127 4 25x60 48 042980
60 30 85 4 16x50 48 041429
Complete with four countersunk screws M6X16 and four cylinder head screws

Long design
TI 501-0-03

D
mm		 d
mm		 L
mm		 l
mm		 S
mm		 TK
mm		 ID
50 20 107 40 25x60 32 041124
50 20 122 55 25x60 32 041125
50 20 137 70 25x60 32 041126
59 30 93 25 25x60 48 041127
59 30 108 40 25x60 48 041128
50 20 83 25 20x50 32 042982
50 20 98 40 20x50 32 042983
50 20 113 55 20x50 32 042984
59 30 83 25 20x50 48 042985
59 30 98 40 20x50 48 042986
Sales unit consists of arbor, clamping screw and conical spring washer (flat design), without spacers.

Spare parts

BEZ ABM
mm		 BEM ID
Washer with safety device against twisting, M10 20/35x16x10.5 for d = 20 006768
Washer with safety device against twisting, M16 30/45x16x16.5 for d = 30 006769
Suitable spacers, see section 9.3.
