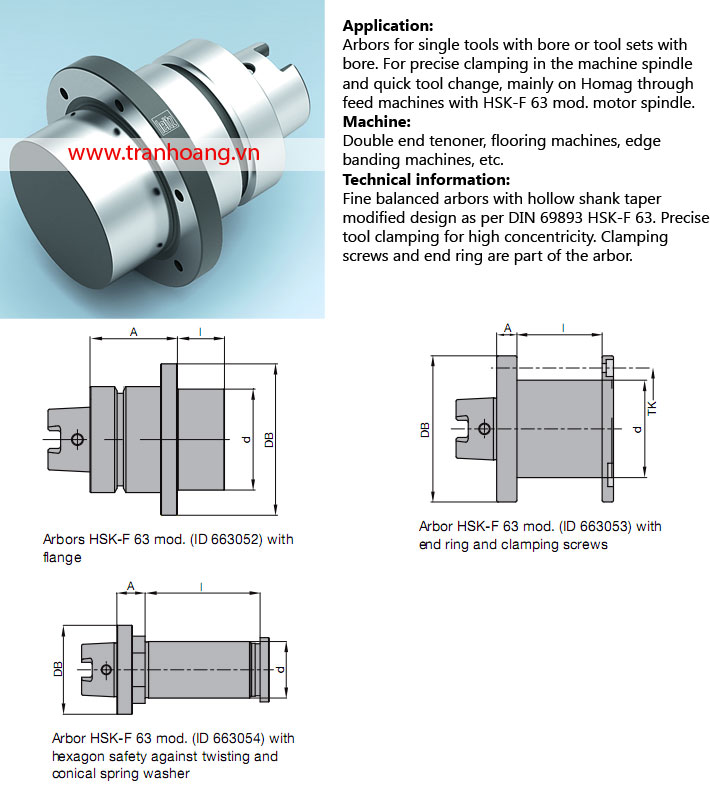

Cutting arbor with hollow taper shank HSK-F 63 mod TH-633
Giá: Liên hệ

Thông số kỹ thuật:
HSK-F 63 mod., A = 12.5 mm, 20 mm and 52 mm
TB 300 0

Machine l
mm		 d
mm		 A
mm		 DB
mm		 TK
mm		 ID
Homag 28 60 52 90 6/M6/75 663052
Homag 55 60 12.5 90 6/M6/75 663053
Homag 75 40 20 63 Hexagon 663054

Spare parts

BEZ ABM
mm		 ID
Cylindrical screw with ISK M6x30 005928
Cylindrical screw with ISK M6x65 005935
Allen Key SW 5 005452
