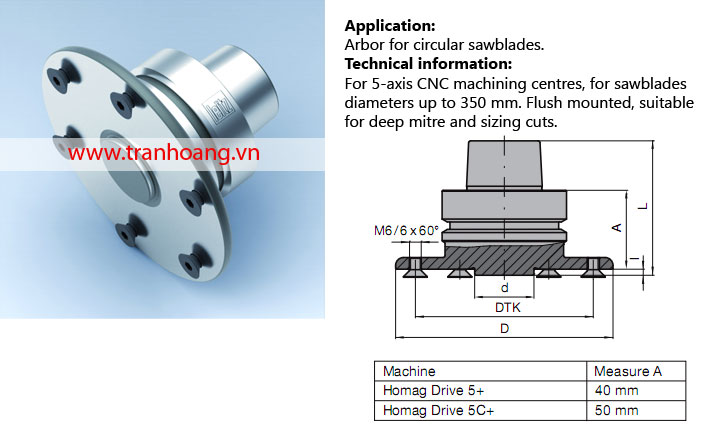

Tool adaptor for circular sawblades TH-638
Giá: Liên hệ

Thông số kỹ thuật:
HSK-F 63, DIN 69893, model with flush flange
TI 501-0-07

Machine A
mm		 d
mm		 D
mm		 lmax
mm		 TK
mm		 L
mm		 Weight
kg		 ID
Homag 40 30 110 3.5 90 68 1.3 663050
  50 30 110 3.5 90 78 1.5 663060

Spare parts

BEZ ABM
mm		 ID
Countersink screw with ISK M6x10 005780
Allen Key SW 4 005434
